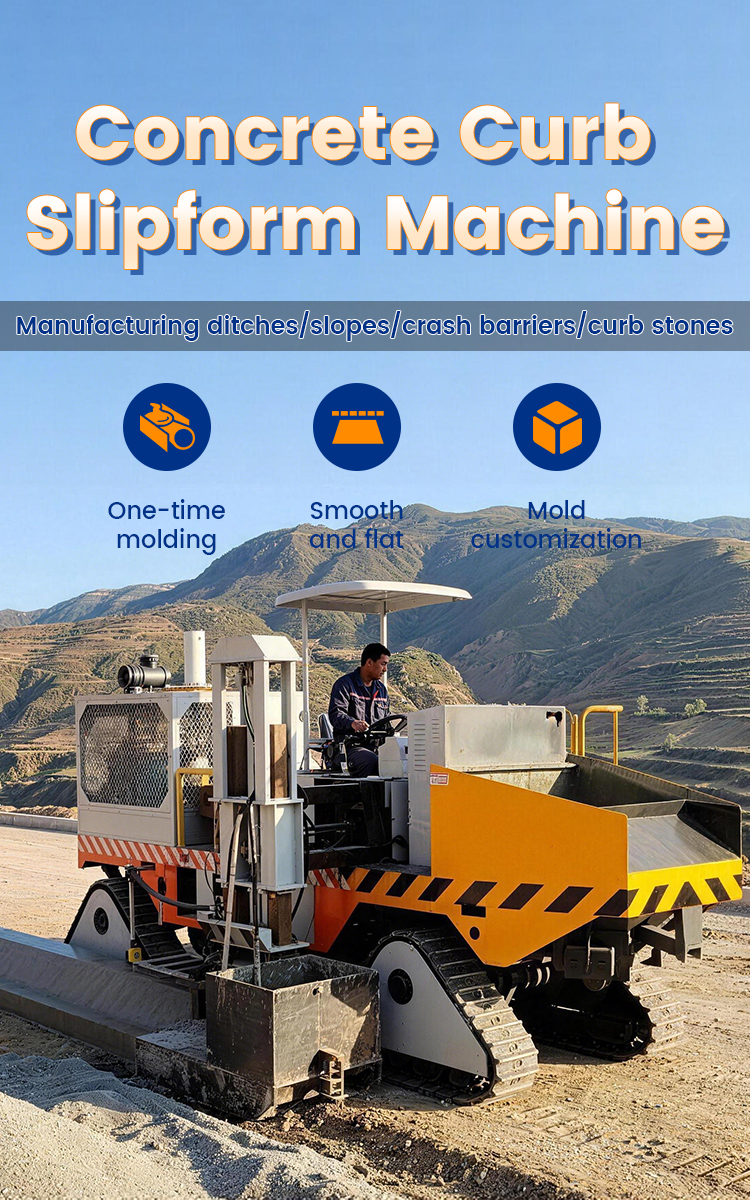

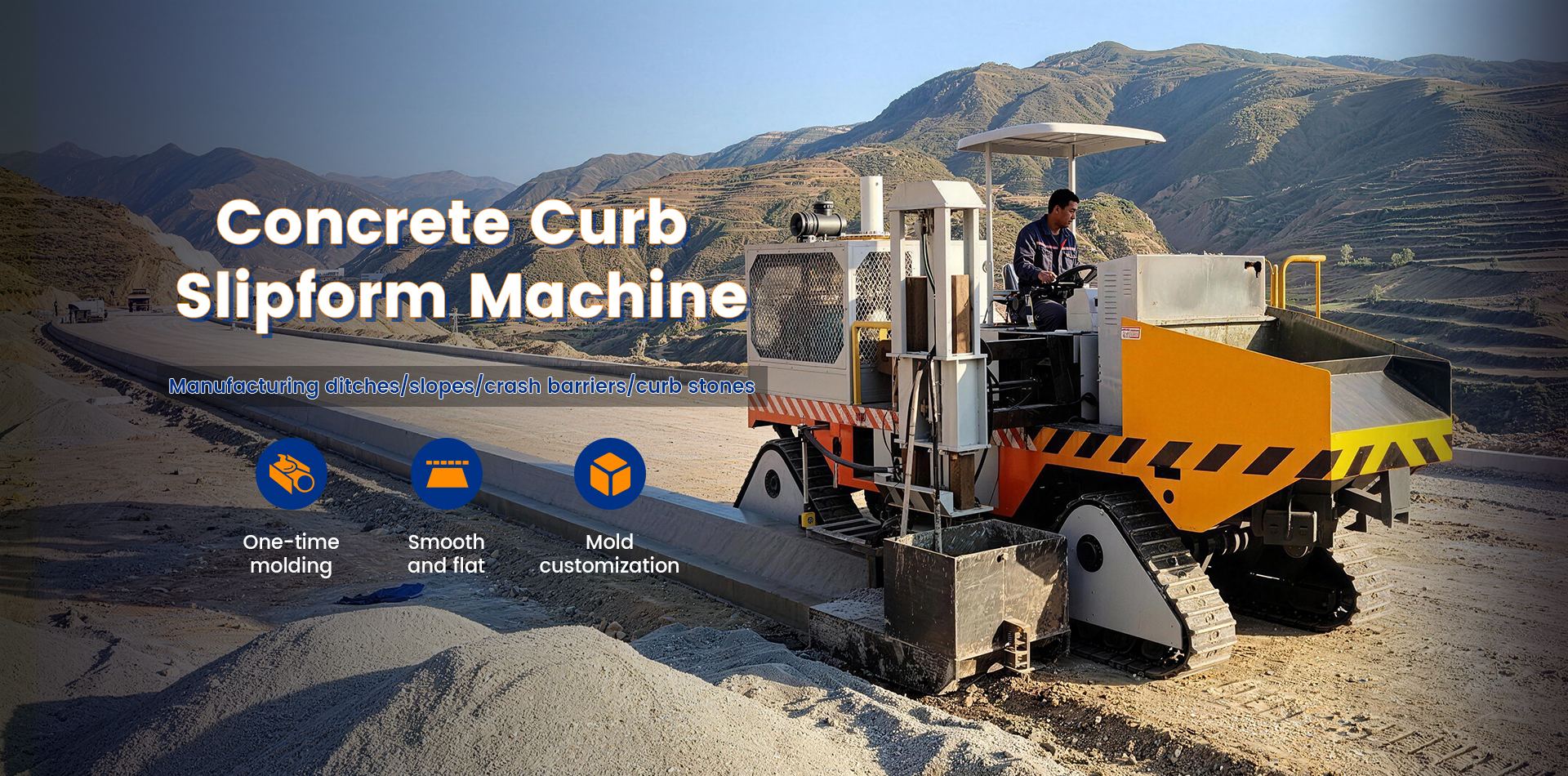

Concrete Curb Slipform Machine
Yugong Machinery YG-KB20 is an eight-wheel slipform paver built for versatility and power. It features a 65 kW turbo diesel engine with full-time four-wheel drive, handling curbs up to 600 mm in height and 2000 mm in width at paving speeds of 1 to 7 meters per minute. The patented anti-rollback system maintains speed on slopes without braking, while the dual steering system reduces curve deviation by over 95%. The large manganese steel hopper feeds material quickly, and the high-frequency vibration system ensures smooth, dense surfaces in a single pass.Applications: Highway curbs, municipal sidewalks, median barriers, drainage channels, L-shaped sections, retaining walls, and guardrail bases.
Contact Us Now
Our Machines

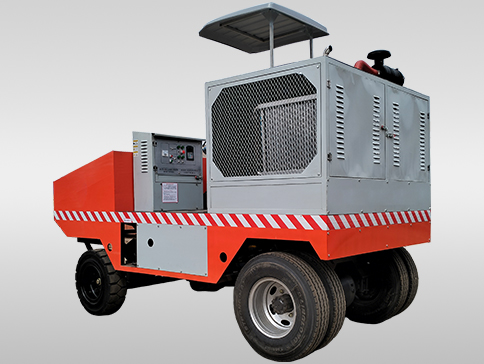

YG-KB15 Compact Slipform Paver
Get A Quote
YG-KB15 Compact Slipform Paver

*35 kW compact wheel diesel paver.
*700 mm height, 1500 mm width.
*1–10 m/min, 4500 mm radius.
*800 mm rear tires boost traction.

Get A Quote

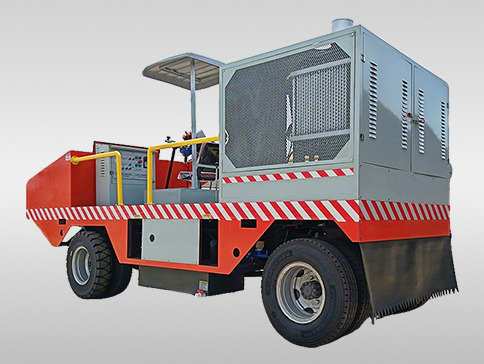

YG-KB20 Eight-Wheel Slipform Paver
Get A Quote
YG-KB20 Eight-Wheel Slipform Paver

*65 kW turbo diesel wheel paver.
*600 mm height, 2000 mm width.
*1–7 m/min, 6800 mm radius.
*Tracks and tires interchangeable for versatility.

Get A Quote

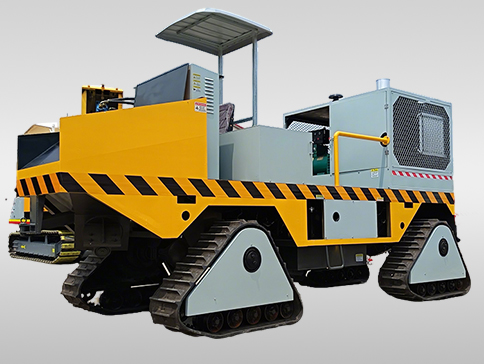

YG-KB30 Four-Track Slipform Paver
Get A Quote
YG-KB30 Four-Track Slipform Paver

*65 kW four-track diesel paver.
*1100 mm height, 2000 mm width.
*1–10 m/min, 6800 mm radius.
*Four tracks eliminate bumpy-road pitching.

Get A Quote
Machine Specifications
ModelYG-KB30YG-KB20YG-KB15YG-KB15
Machine TypeCrawler PortableWheel PortableWheel PortableHand Push
Engine Power65 kW Diesel Engine65 kW Turbo Diesel Engine35 kW Diesel Engine12 kW Diesel Engine
Maximum Curb Height≤1100 mm≤600 mm≤700 mm≤500 mm
Maximum Curb Width≤2000 mm≤2000 mm≤1500 mm≤900 mm
Paving Speed1–10 m/min1–7 m/min1–10 m/min1–6 m/min
Hopper Capacity1 m³1 m³0.3 m³0.4 m³
Minimum Turning Radius6800 mm6800 mm4500 mm/
Forming MethodHigh Frequency VibrationHigh Frequency Vibration

High Frequency Vibration
 / Attachable vibration motor

High Frequency Vibration
Machine Dimensions5200 × 2400 × 2800 mm5200 × 2400 × 2800 mm3600×2400×2200mm3300 × 2100 × 1200 mm
Machine Weight7000 kg6000 kg3500 kg1800 kg
ModelYG-KB30YG-KB20YG-KB15YG-KB15
Machine TypeCrawler PortableWheel PortableWheel PortableHand Push
Engine Power65 kW Diesel Engine65 kW Turbo Diesel Engine35 kW Diesel Engine12 kW Diesel Engine
Maximum Curb Height≤1100 mm≤600 mm≤700 mm≤500 mm
Maximum Curb Width≤2000 mm≤2000 mm≤1500 mm≤900 mm
Paving Speed1–10 m/min1–7 m/min1–10 m/min1–6 m/min
Hopper Capacity1 m³1 m³0.3 m³0.4 m³
Minimum Turning Radius6800 mm6800 mm4500 mm/
Forming MethodHigh Frequency VibrationHigh Frequency Vibration

High Frequency Vibration
 / Attachable vibration motor

High Frequency Vibration
Machine Dimensions5200 × 2400 × 2800 mm5200 × 2400 × 2800 mm3600×2400×2200mm3300 × 2100 × 1200 mm
Machine Weight7000 kg6000 kg3500 kg1800 kg

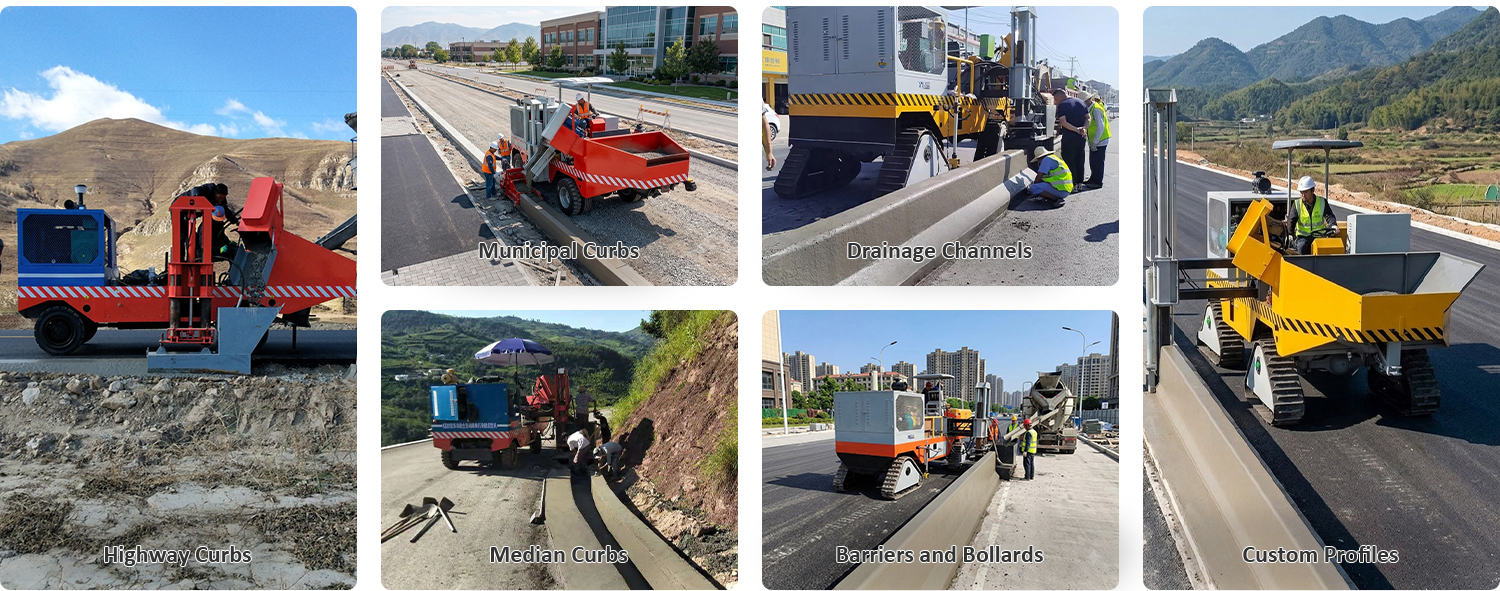

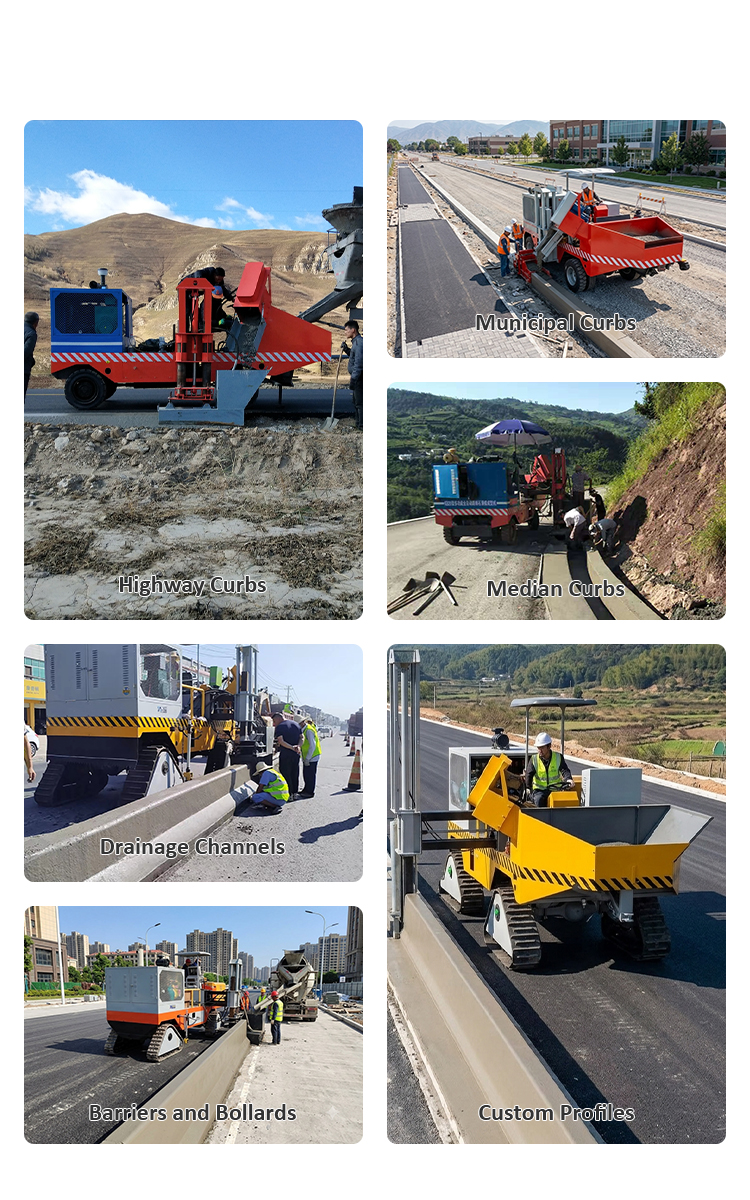

Application Areas

应用场景3

移动端场景

应用场景3

移动端场景

Product Advantages
Chinese Engineering Wisdom, Empowering the World.
Extra-large hopper

Enlarged capacity manganese steel hopper, wear-resistantand corrosion-resistant, ext-ended service life, suitable forvarious types of mixed mater-als.

Get A Quote →
CNC Design

PLC control box, used tooperate the machine witha wireless remote control,easily adapts to various working conditions and iseasy to use.

Get A Quote →
Automatic leveling double polishing

Equipped with an automatic leveling device, it easily hand-les uneven road surfaces. A second polishing step after shaping ensures a smoothand clean finished product

Get A Quote →
Customized molds

Molds can be customized insize and shape, enabling multi-mold construction with a single machine and saving costs

Get A Quote →
Dual auto steeringsystem

It can reduce the position deviation of the sliding mold at the bend bymore than 95%, thus ensuring theroad width!

Get A Quote →
You Might Also Like

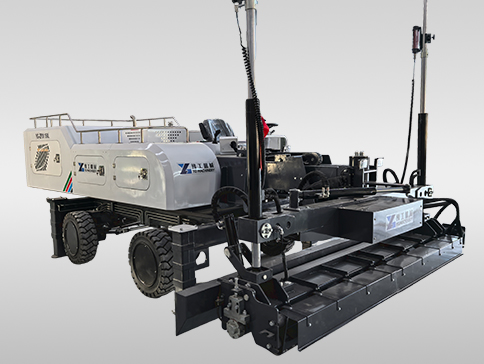

Concrete Laser Screed
Learn More »

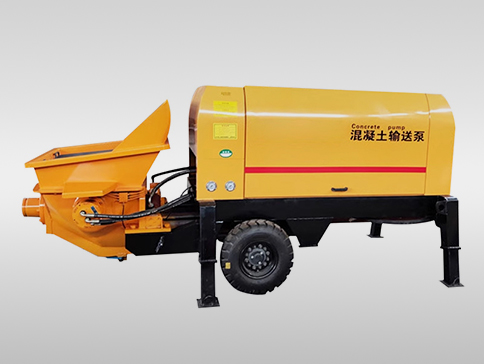

Concrete Pump
Learn More »

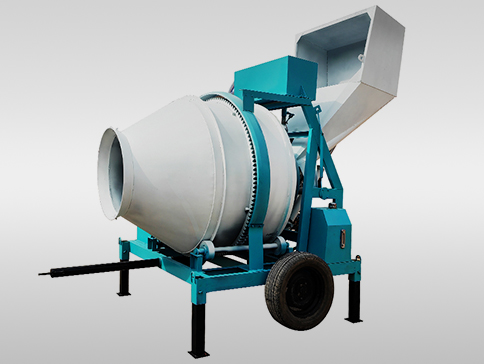

Concrete Mixer
