Concrete Laser Screed

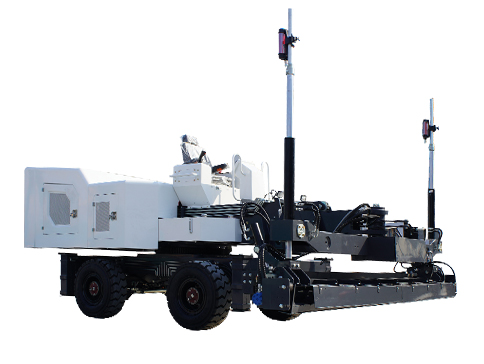

The YG-ZP30 Laser Leveling Machine (with telescopic arm) manufactured by Yugong Machinery is equipped with a diesel engine and hydraulic power system, four-wheel steering anti-slip tires, hydraulic outriggers and laser receiver, and a built-in rotating auger that improves construction efficiency.Customer Application Scenarios: road surfaces, parking lot paving, small factories, warehouse centers, airports & stations, building foundations.

Our Machines

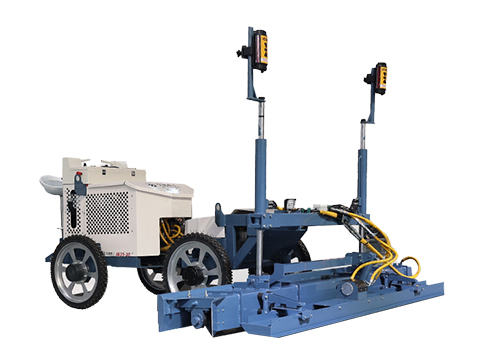

YG-CL300

Get A Quote

YG-CL300

Compact and lightweight design
Honda GX690 engine power
Power: 22.8 kW
Working width: 2500 mm

Get A Quote

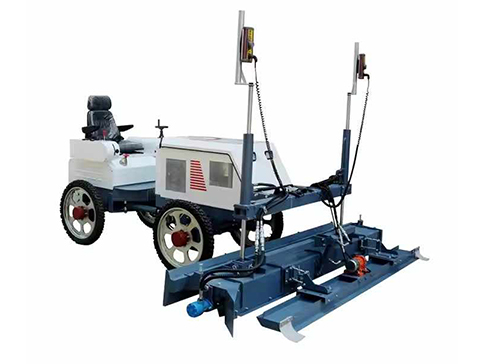

YG-CL300A

Get A Quote

YG-CL300A

Reliable SES/LCONCIN engine
Easy to transport
Power: 22.8 kW
Working width: 3000 mm

Get A Quote

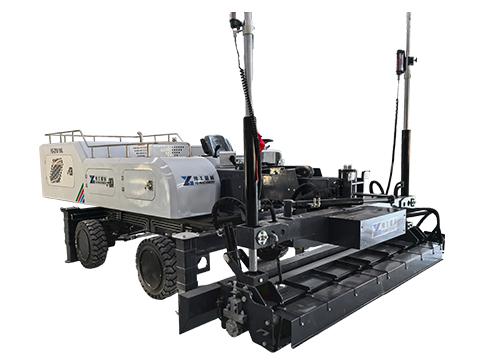

YG-ZP30 (with telescopic arm)

Get A Quote

YG-ZP30 (with telescopic arm)

Telescopic arm extends 6000 mm
Heavy‑duty Yanmar engine
Power: 35.5 kW
Fuel tank: 100 L

Get A Quote

YG-ZP40 (with telescopic arm)

Get A Quote

YG-ZP40 (with telescopic arm)

Telescopic arm extends 6000 mm
Danfoss hydraulic system
Power: 63.9 kW
Working width: 4000 mm

Get A Quote

Machine Specifications

Type	YG-CL300	YG-CL300A	YG-ZP30(with telescopic arm)	YG-ZP40(with telescopic arm)
Engine Model	SES/LCONCIN（Honda GX690）	SES/LCONCIN	Yanmar 4TNV94L	Yanmar 4TNV98T
Engine Power	22.8KW / 23ps	22.8KW / 23ps	35.5KW / 48hp	63.9KW / 48hp
Fuel Capacity	20L	20L	100L	140L
Hydraulic System	/		Danfoss	Danfoss
Leveling Width	2500mm	3000mm	3100mm	4000mm
Leveling Thickness	60-300mm	60-300mm	100-450mm	100-450mm
Telescopic Length	/		6000mm	6000mm
Travel Speed	0-4km/h	0-4km/h	4-8km/h	4-8km/h
Body Dimensions	3300x3460x1650mm	3300x3460x1650mm	5350x3650x2040mm	5350x3650x2040mm
Body Weight	1000KG	1000KG	5500KG	8500KG
Packaging Dimensions	3.211.811.8m	3.561.852.05m	40HQ	40HQ

Type	YG-CL300	YG-CL300A	YG-ZP30(with telescopic arm)	YG-ZP40(with telescopic arm)
Engine Model	SES/LCONCIN（Honda GX690）	SES/LCONCIN	Yanmar 4TNV94L	Yanmar 4TNV98T
Engine Power	22.8KW / 23ps	22.8KW / 23ps	35.5KW / 48hp	63.9KW / 48hp
Fuel Capacity	20L	20L	100L	140L
Hydraulic System	/		Danfoss	Danfoss
Leveling Width	2500mm	3000mm	3100mm	4000mm
Leveling Thickness	60-300mm	60-300mm	100-450mm	100-450mm
Telescopic Length	/		6000mm	6000mm
Travel Speed	0-4km/h	0-4km/h	4-8km/h	4-8km/h
Body Dimensions	3300x3460x1650mm	3300x3460x1650mm	5350x3650x2040mm	5350x3650x2040mm
Body Weight	1000KG	1000KG	5500KG	8500KG
Packaging Dimensions	3.211.811.8m	3.561.852.05m	40HQ	40HQ

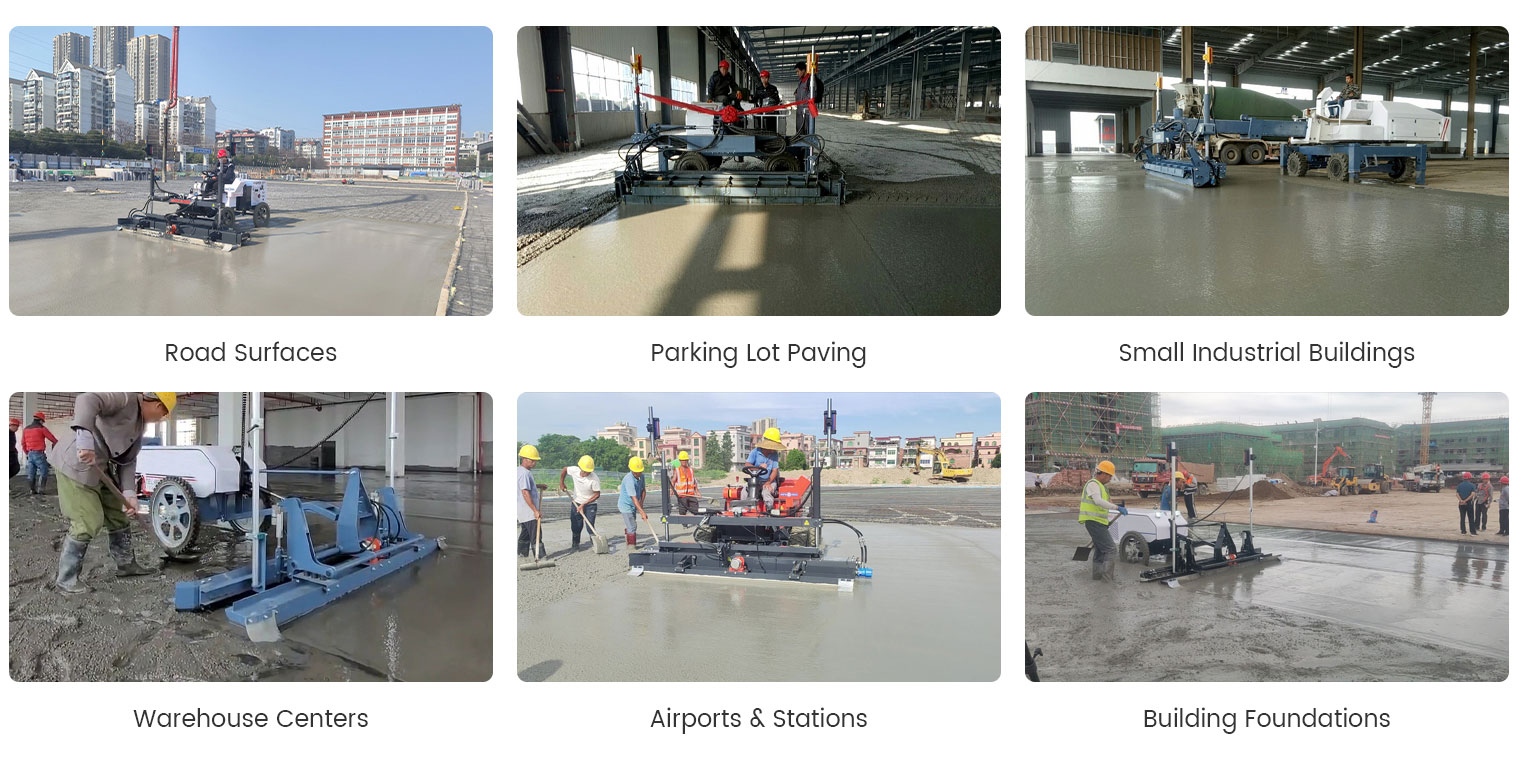

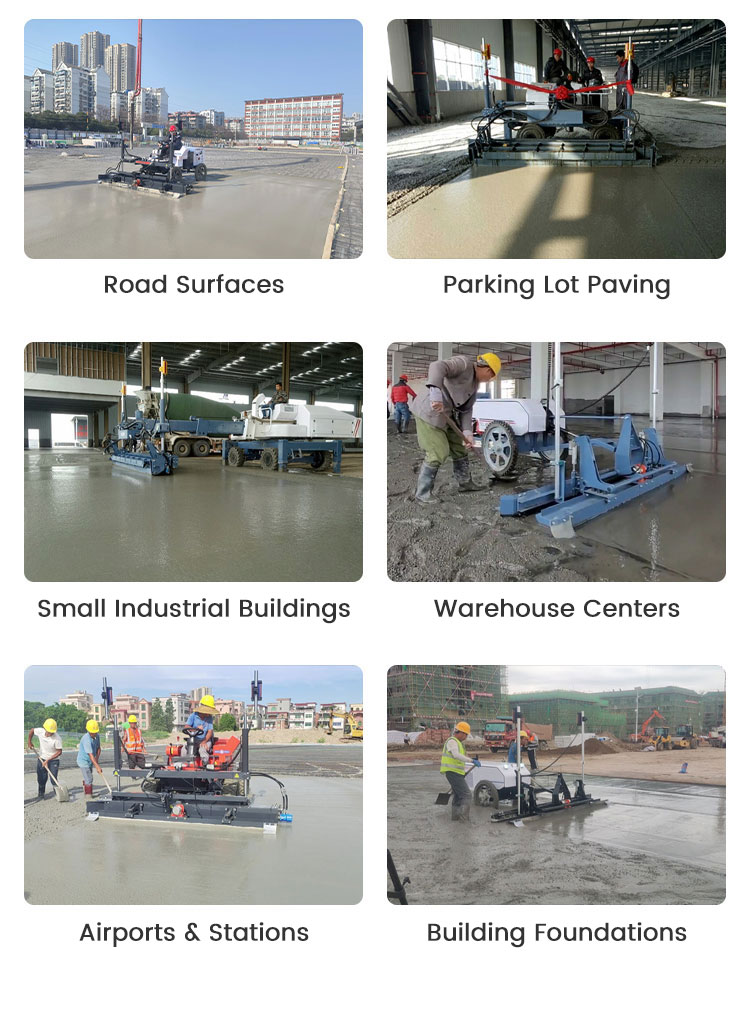

Customer Application Scenarios

de2b9b98ca81f07087df4fb0b3bfff50

Diesel Engine & Hydraulic Power System

Get A Quote →

Centralized Control Panel

The user-friendly centralized console features clear data display and simple controls for one-button start and easy operation.

Get A Quote →

Four-Wheel Steering & Anti-Slip Tires

Large tread anti-slip tires with serrated design provide powerful traction and flexible, convenient operation on any terrain.

Get A Quote →

Hydraulic Outriggers & Laser Receiver

The laser receiver and tilt sensor operate automatically, keeping leveling error within 5mm for precise flatness.

Get A Quote →

Built-in Rotating Auger for Higher Efficiency

The built-in rotating auger improves material distribution, increasing daily work area to 3,000-5,000m² with one operator.

Get A Quote →
