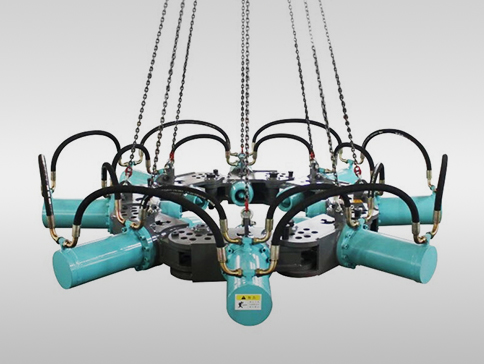

Pile Breaker Machine

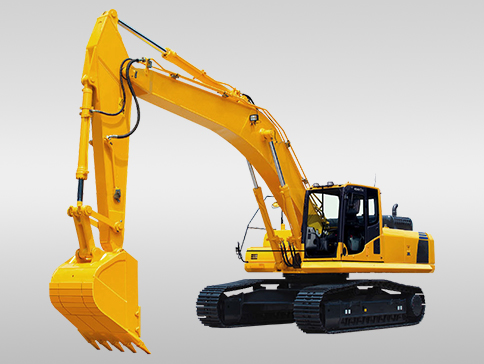

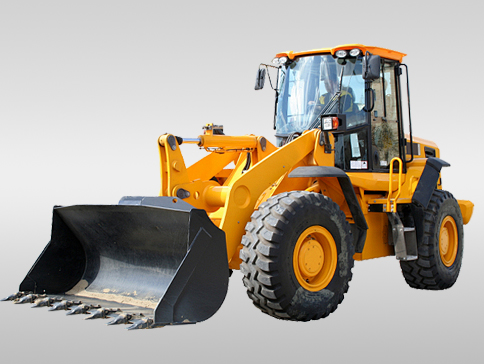

Yugong Machinery hydraulic pile breaker attaches to excavators, cranes or loaders for versatile job site deployment. Its modular design handles round piles from 400mm to 2200mm and square piles from 250mm to 650mm. Simply swap modules to switch sizes or shapes. The hydraulic system delivers powerful 300KN crushing force, cutting pile heads cleanly while protecting rebar. Safe, quiet and efficient – ideal for bridges, railways and building foundations.

Our Machines

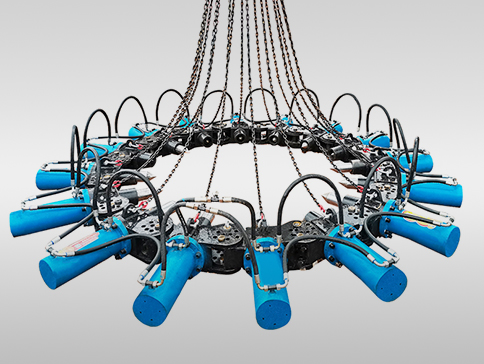

Round Pile Breaker

Get A Quote

Round Pile Breaker

*For Round Piles 400 to 2200mm *300KN Force for Mass Concrete Piles *8-16 Modules for High Efficiency *500mm Per Cut, Faster Removal

Get A Quote

Modular Pile Breaker

Get A Quote

Modular Pile Breaker

*One Machine for Round & Square Piles *8-16 Modules, 400-2200mm Diameter *Quick Module Swap, No Tools Needed *Fits Excavators or Hydraulic Power

Get A Quote

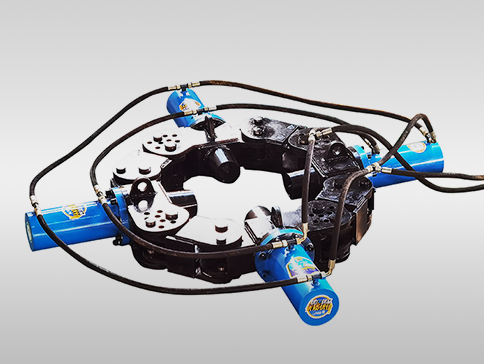

Square Pile Breaker

Get A Quote

Square Pile Breaker

*For Square Piles 250 to 650mm *Clean Break, Less Concrete Spalling *Quick Setup for Different Square Sizes *Lightweight, Easy to Transport

Get A Quote

Machine Specifications

Pile Breaker – Configurations & Specifications
No. of Modules	4	8	10	11	14	16
Total Weight	1334kg	2160kg	2700kg	2970kg	4900kg	5600kg
Pile Dia. Range	400-600mm	600-800mm	980-1150mm	1150-1300mm	1650-1800mm	1970-2200mm
Outer Dia.	2340mm	2540mm	2890mm	3040mm	3740mm	4140mm
Excavator Weight	20T-30T		30T-40T		Hydraulic System/Pump Station
Max. Crushing Force	300KN
Cylinder Stroke	300mm
Cylinder Pressure	31.5MPa
Ground Clearance	150mm
Cylinder Lifting Force	20L/min
Cut Height	≦500mm
Machine Weight	≧20t
Cylinder Model	φ160(单缸约6L)/φ180(单缸约8L)
Chisel Dia.	φ160--100mm			φ180--110mm
Tip Length	φ160--250mm			φ180--300mm
Module Weight	φ160--270KG			φ180--350KG
Module Length	φ160--870mm			φ180--970mm

Pile Breaker – Configurations & Specifications
No. of Modules	4	8	10	11	14	16
Total Weight	1334kg	2160kg	2700kg	2970kg	4900kg	5600kg
Pile Dia. Range	400-600mm	600-800mm	980-1150mm	1150-1300mm	1650-1800mm	1970-2200mm
Outer Dia.	2340mm	2540mm	2890mm	3040mm	3740mm	4140mm
Excavator Weight	20T-30T		30T-40T		Hydraulic System/Pump Station
Max. Crushing Force	300KN
Cylinder Stroke	300mm
Cylinder Pressure	31.5MPa
Ground Clearance	150mm
Cylinder Lifting Force	20L/min
Cut Height	≦500mm
Machine Weight	≧20t
Cylinder Model	φ160(单缸约6L)/φ180(单缸约8L)
Chisel Dia.	φ160--100mm			φ180--110mm
Tip Length	φ160--250mm			φ180--300mm
Module Weight	φ160--270KG			φ180--350KG
Module Length	φ160--870mm			φ180--970mm

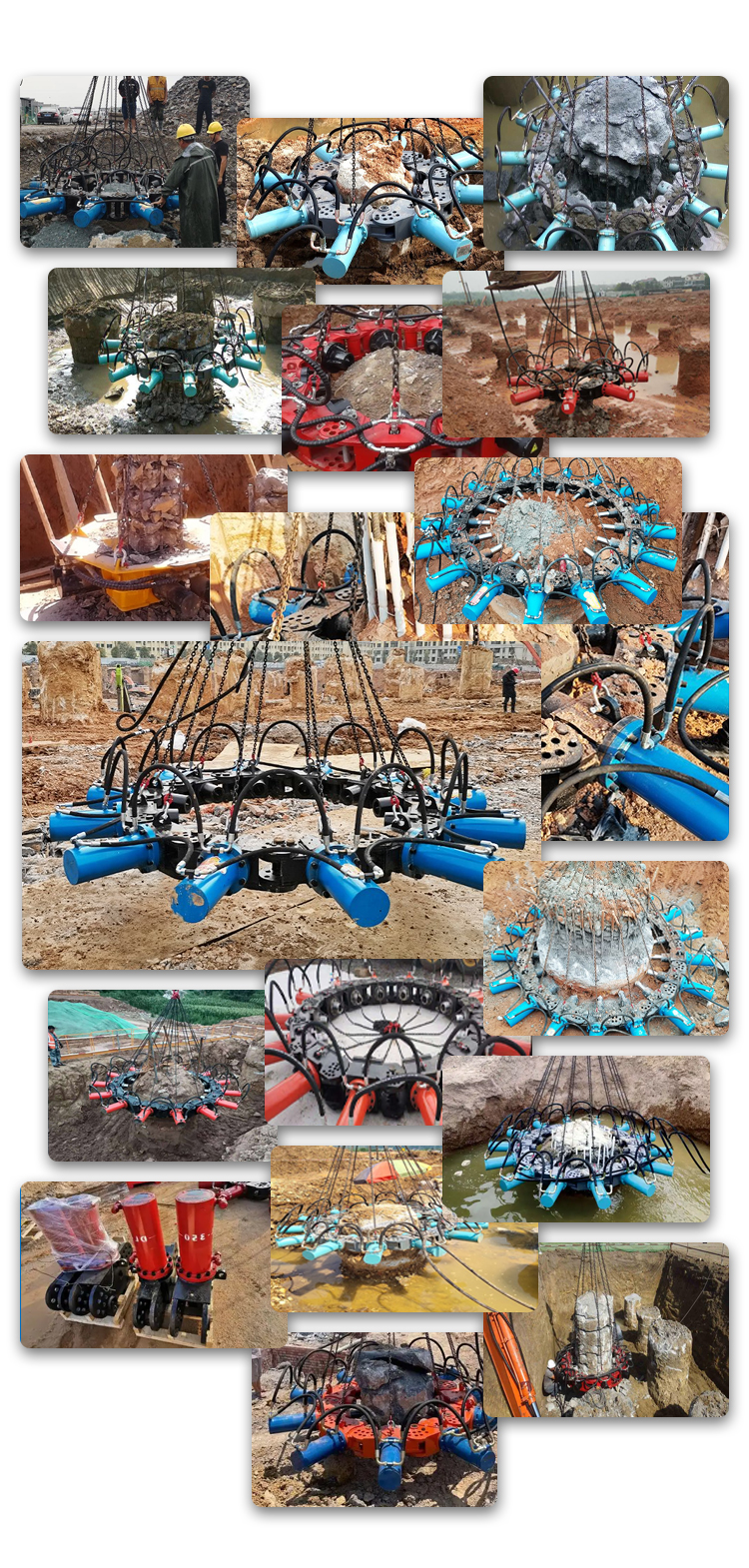

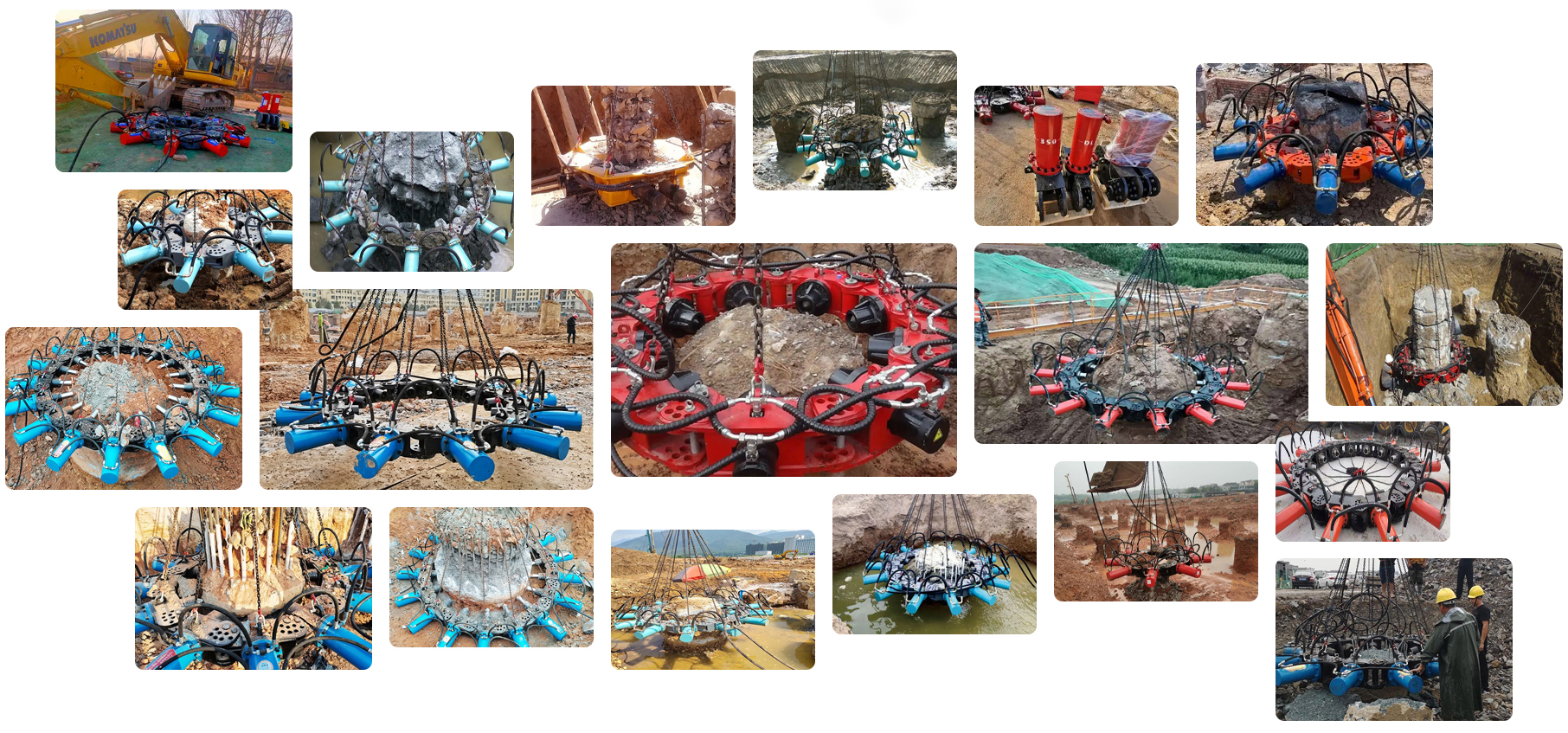

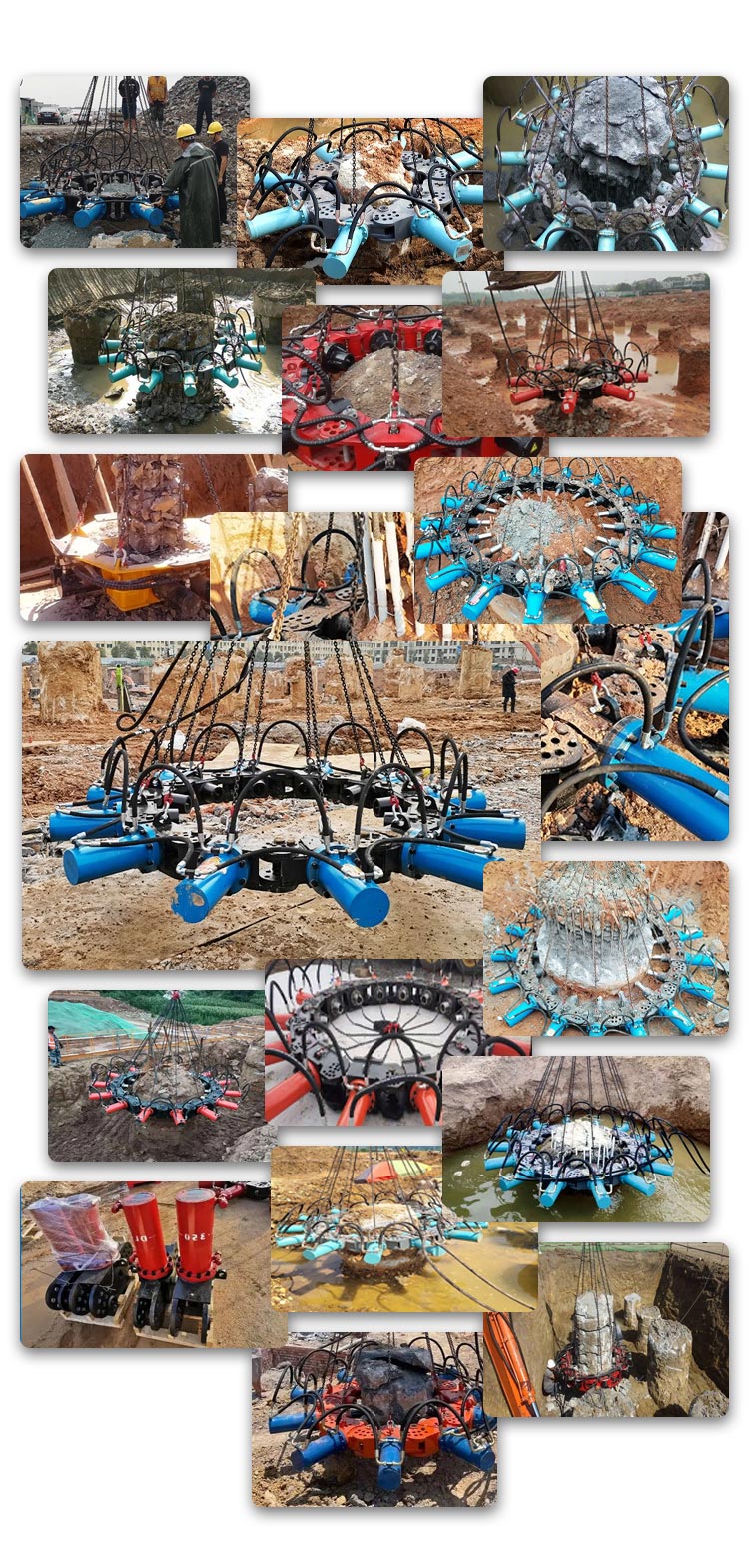

Well Received by Users

案例1

“移动端案例”/

案例1

“移动端案例”/

Product Advantages

Chinese Engineering Wisdom, Empowering the World.

01 CONVENIENT AND FAST

Modular design, add or reduce modules according to pile size. Convenient construction and low cost.

Get A Quote →

02 CONICAL TOP DESIGN

Prevents soil accumulation in guide flange, avoiding steel drill sticking, deflection and breakage.

Get A Quote →

03 STRONG PRESSURE BEARING CAPACITY

Thickened module plates with optimized structure. Strong pressure resistance prevents plate failure.

Get A Quote →

04 FAST PILE BREAKING SPEED

Enlarged oil cylinder – single module drill head lifts up to 60 tons. Powerful and fast.

Get A Quote →

05 LOW NOISE, ECO-FRIENDLY & SAFE

Hydraulic-driven system ensures quiet, smooth operation. Minimal vibration, environmentally friendly and safe.

Get A Quote →
